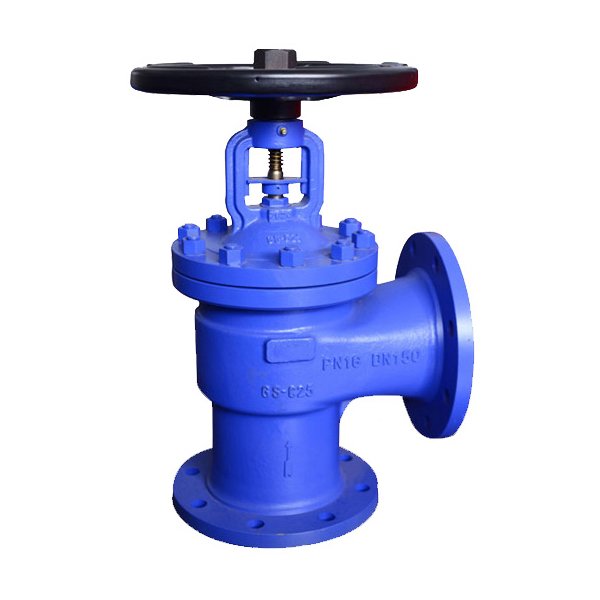

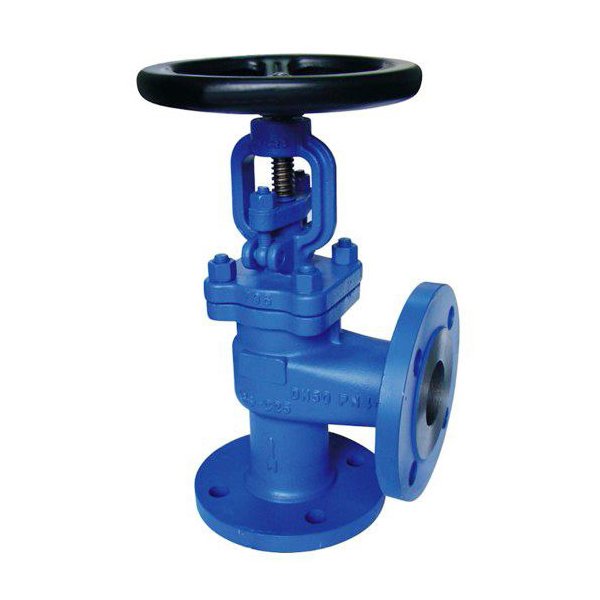

Features:
Angle type, stop valve
Face to face dimension standard : DIN EN588-1
Size : DN15 – DN400
Pressure range: PN16, PN25, PN40
Operating : manual, electric motor, pneumatic
Material List:

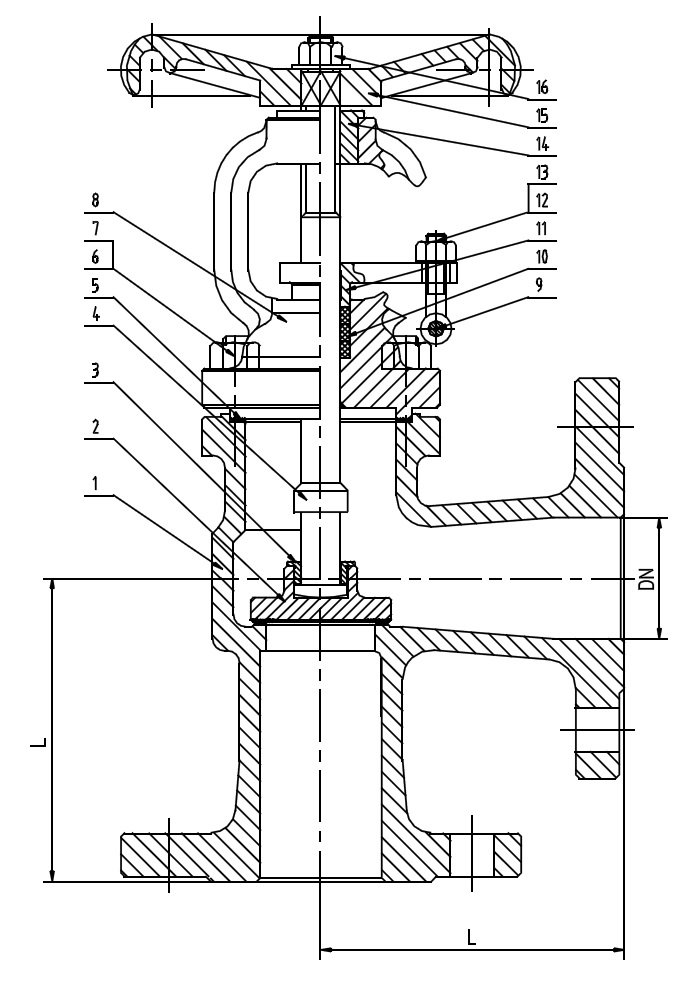

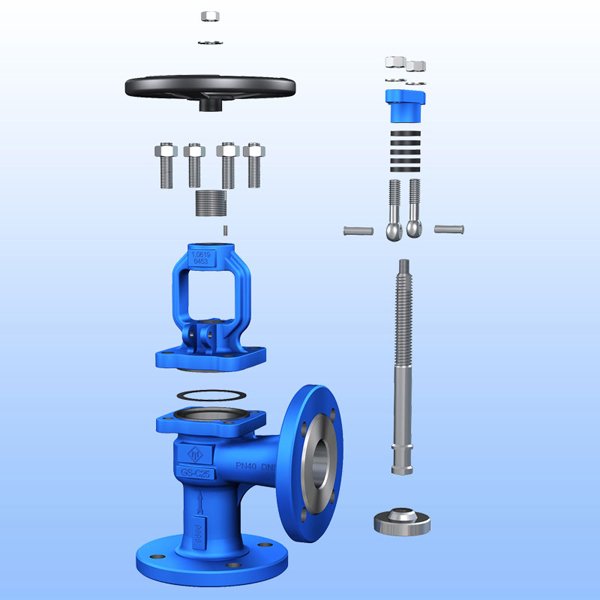

| No. | Part Name | Material |
| 1 | Body | GS-C25, CF8, CF8M |
| 2 | Disc | C.S.+13Cr, CF8, CF8M |
| 3 | Disc Cover | 35#, SS304, SS316 |
| 4 | Stem | 13Cr, F304, F316 |
| 5 | Gasket | Graphite+SS, PTFE |
| 6 | Bolt | A193 B7, B8 |
| 7 | Nut | A194 2H, 8 |
| 8 | Bonnet | GS-C25, CF8, CF8M |
| 9 | Pin | SS304, SS316 |
| 10 | Packing | Flexible Graphite |
| 11 | Gland | GS-C25, SS304, SS316 |
| 12 | Eyebolt | A193 B7, B8 |
| 13 | Nut | A194 2H, 8 |
| 14 | Stem Nut | Albronze |
| 15 | Handwheel | Cast Iron |
| 16 | Nut | 35# |
Dimension List:
| Dimensions DIN EN588-1 | |||||||||||||||||
| DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | |
| L | PN16 | 90 | 95 | 100 | 105 | 115 | 125 | 145 | 155 | 175 | 200 | 225 | 275 | 325 | 375 | 425 | 475 |
| PN25 | 90 | 95 | 100 | 105 | 115 | 125 | 145 | 155 | 175 | 200 | 225 | 275 | 325 | 375 | 425 | 475 | |
| PN40 | 90 | 95 | 100 | 105 | 115 | 125 | 145 | 155 | 175 | 200 | 225 | 275 | 325 | 375 | 425 | 475 | |
Applications:
Petrochemical, chemical fiber textile, plastic paper, electric steel, printing and dyeing rubber, natural gas and other gas systems
