Fire Hydrant Gate Valve

Fire Hydrant Gate Valve

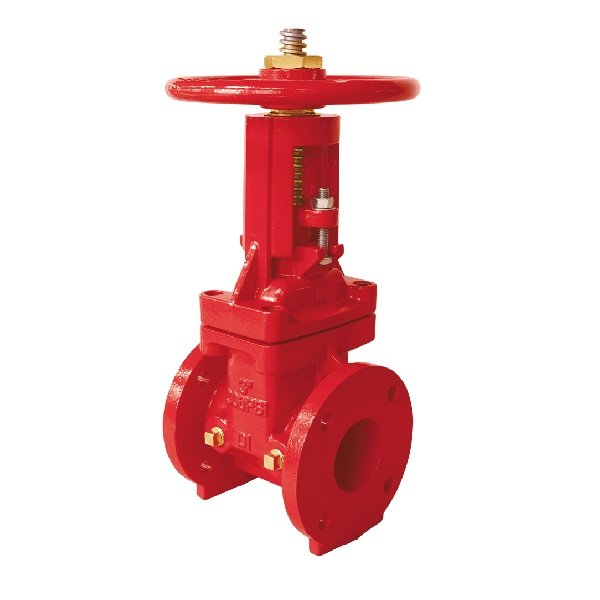

A fire hydrant gate valve is a crucial component of a fire protection water supply system. It is typically installed underground on the water main leading to a fire hydrant. Its primary purpose is for isolation, allowing maintenance crews to safely service or replace a hydrant without disrupting the entire water network. Designed for reliability, these valves are operated with a special key and are built to remain in either the fully open or fully closed position for long periods, ensuring immediate water availability during emergencies.

Category: Tags: ,

Features:

Design standard: ANSI/AWWA C515

Face to Face Standard: ASME B16.10

Flange Standard: ASME/ANSI B 16.1 Class 125ASME/ANSI B 16.42 Class 150BS EN 1092-2 PN 16GB /T9113.1

Soft sealing: NBR, EPDM

Stem type: rising stem

Painting: the inner and outer surface of the valve is coated with powder epoxy coating.

Connection: flanged RF, grooved end

Size: 2″, 2 5″, 3″, 4″, 5″, 6″,8″,10″,12″,14″,16″,18″,20″, 24″

Maximum Working Pressure: 300PSI

Maximum Testing Pressure: 600 PSl

Operator: manual, gearbox, electric actuated, pneumatic cylinder

Material List:

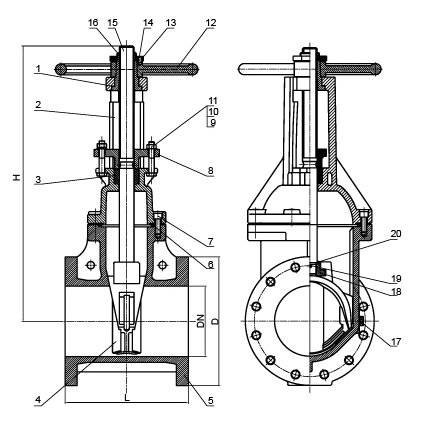

No. Name Material Standard
1 Gasket Stainless Steel 304 or C95400 ASTM A276 or ASTM B148
2 Bonnet Ductile Iron ASTM A536 Grade 65-45-12
3 Packing Graphite
4 Disc Ductile Iron +EPDM ASTM A536 Grade 65-45-12+ASTM D2000
5 Body Ductile Iron ASTM A536 Grade 65-45-12
6 Sealing Ring EPDM ASTM D2000
7 Bolt Stainless Steel 304 or Steel 1045 Bolt / Stainless Steel 304 / ASTM A276 or 1045, ASTM A29
8 Grand Ductile Iron ASTM A536 Grade 65-45-12
9 Nut Stainless Steel 304 or Steel 1045 Nut / Stainless Steel 304 / ASTM A276 or 1045, ASTM A29
10 Fat Washer Stainless Steel 304 or Steel 1045 Fat Washer / Stainless Steel 304 / ASTM A276 or 1045, ASTM A29
11 Bolt Stainless Steel 304 or Steel 1045 Bolt / Stainless Steel 304 / ASTM A276 or 1045, ASTM A29
12 Handwheel Ductile Iron ASTM A536 Grade 65-45-12
13 Lock Nut C95400 ASTM B148
14 Locking Screw Stainless Steel 304 or Steel 1045 Stainless Steel 304 / ASTM A276 or 1045, ASTM A29
15 Stem Stainless Steel 304 or C95400 ASTM B148
16 Stem Nut C95400 ASTM B148
17 Plug C95400 ASTM B148
18 Lifting Nut CFB or C95400 CR80CFBM or C95400 / ASTM A351 or ASTM B148
19 Pin Stainless Steel 304 ASTM A276
20 Sealing Ring EPDM ASTM D2000

Dimensions:

Size DN L D H
2½” 65 190 178 370
3″ 80 203 191 420
4″ 100 229 229 447
5″ 125 254 254 547
6″ 150 267 279 607
8″ 200 292 343 754
10″ 250 330 406 890
12″ 300 356 483 1031
