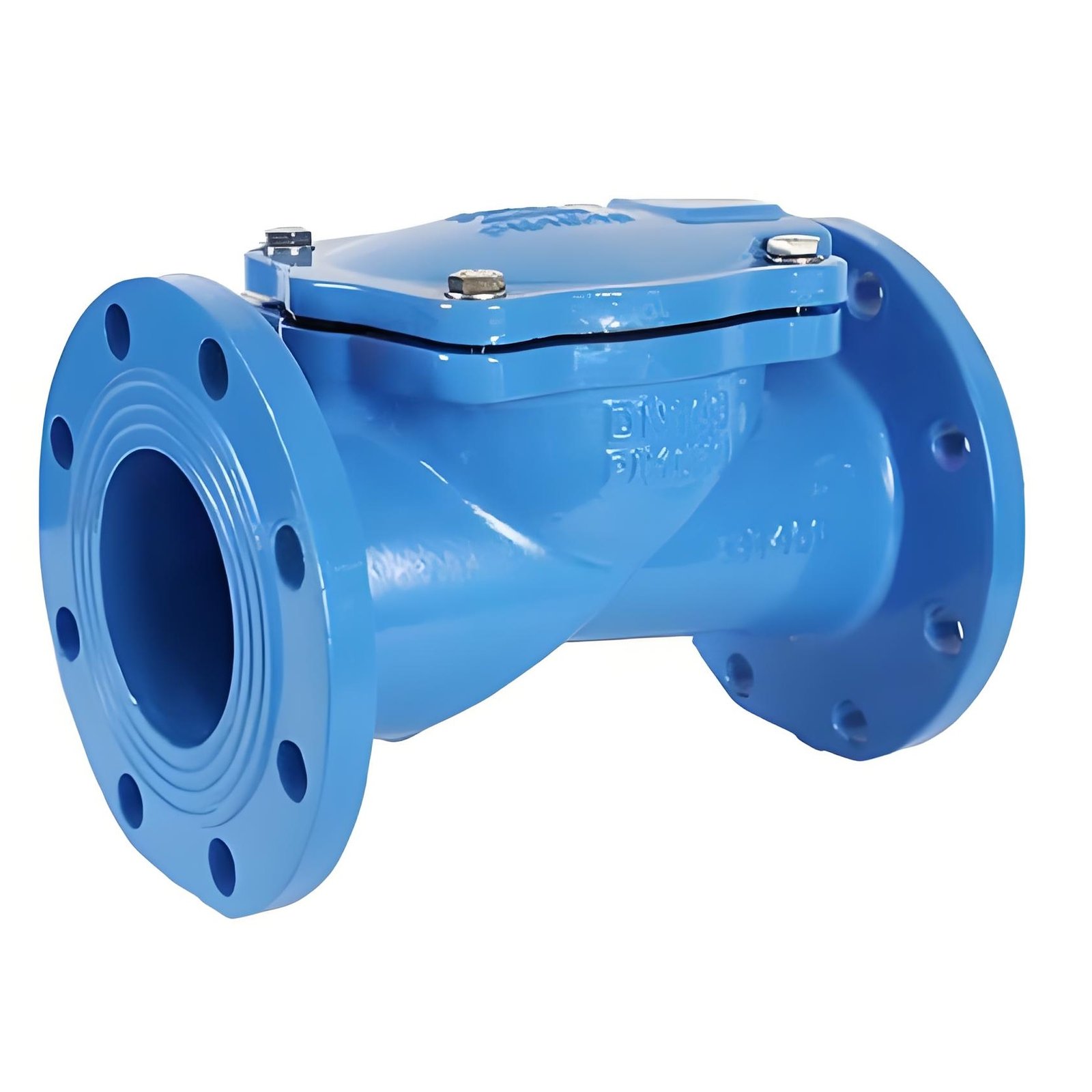

Bolted bonnet with eyebolt on cover
Swing and rubber flapper
Design according to BS 5153, MSS SP-71
Flange connection standard: GB/T 9113, EN1092-2 PN10/PN16, ANSI B16.10 125LB/150LB
Pressure test: EN 12266-1
Size range : 2″ to 24″, DN50 to DN600
Pressure range : PN10, PN16, CL125/150
Applications: water supply, drinking water, irrigation, sewage
Painting: the inner and outer surface of the valve is coated with powder epoxy coating.
Material List:
| Part Name | Material |
| Body | Ductile Iron |
| Cap | Ductile Iron |
| Disc/flapper | WCB+EPDM/NBR |
| Gasket | EPDM |
| Bolts | AISI 1045 |

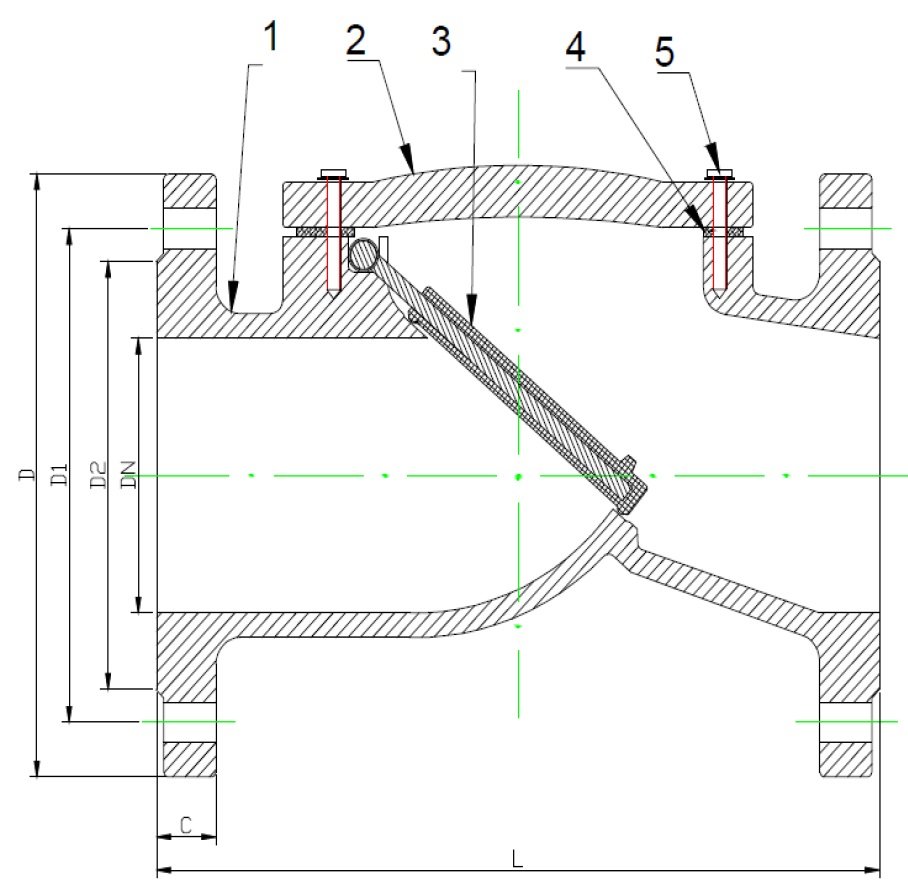

Dimension List:
|
DN |
L |
EN1092-2 PN10/16 | ANSI B16.1 CL125/150 | ||||
| D | D1 | n-φd | D | D1 | n-φd | ||
| 50 | 208 | 160 | 125 | 4-19 | 160 | 120.5 | 4-19 |
| 65 | 210 | 180 | 145 | 4-19 | 180 | 139.5 | 4-19 |
| 80 | 225 | 195 | 160 | 8-19 | 195 | 152.5 | 4-19 |
| 100 | 292 | 220 | 180 | 8-19 | 220 | 190.5 | 8-19 |
| 125 | 360 | 250 | 210 | 8-19 | 250 | 216 | 8-22 |
| 150 | 327 | 280 | 240 | 8-23 | 280 | 241.5 | 8-22 |
| 200 | 410 | 335 | 295 | 8-23/12-23 | 335 | 298.5 | 8-22 |
| 250 | 500 | 395/405 | 350/355 | 12-23/12-27 | 405 | 362 | 12-25 |
| 300 | 698 | 445/460 | 400/410 | 12-23/12-27 | 480 | 432 | 12-25 |
| 350 | 787 | 505/520 | 460/470 | 16-23/16-31 | 530 | 476.5 | 12-29 |
| 400 | 914 | 565/580 | 515/525 | 16-28/16-31 | 595 | 539.5 | 16-29 |
| 450 | 965 | 615/640 | 565/585 | 20-26/20-30 | 635 | 578 | 16-32 |
| 500 | 1067 | 670/705 | 620/650 | 20-25/20-34 | 700 | 635 | 20-32 |
| 600 | 1219 | 780/840 | 725/770 | 20-30/20-41 | 815 | 749.3 | 20-35 |
