Features:
Design standard : DIN 3352 F4, DIN3352 F5, BS 5163
Soft sealing wedge : NBR, EPDM
Stem type: rising stem, non-rising stem(NRS)
Painting : inner and outer surface of the valve is coated by powder epoxy coating.

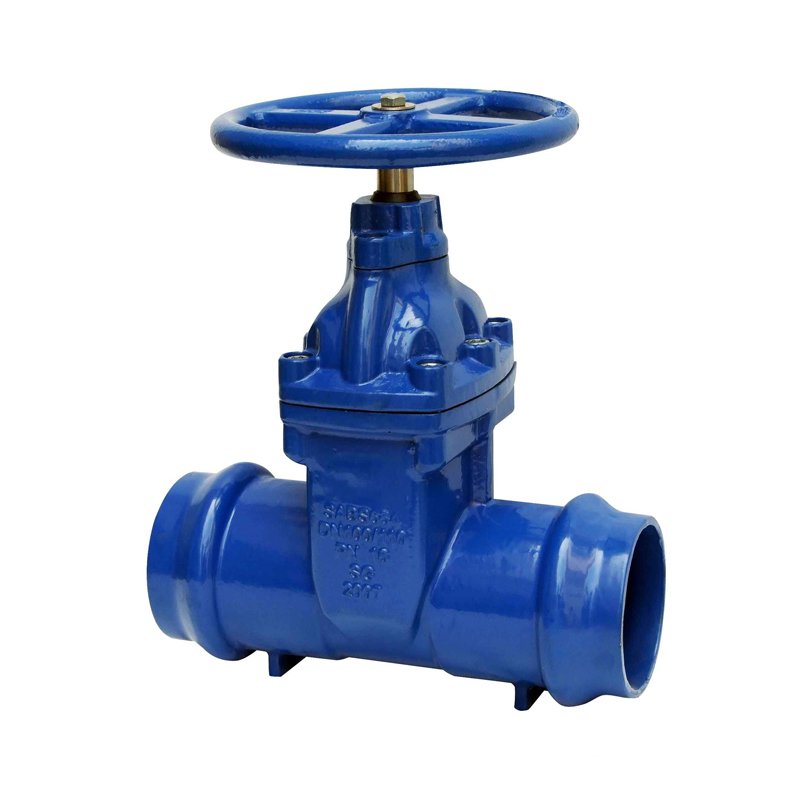

Connection : socket end for PVC pipe
Size: from DN50 to DN300
Pressure : PN6, PN10, PN16
Operator : manual, gear box, electric actuated, pneumatic cylinder
Material List:
| Part Name | Material |
| Body | Cast Iron, Ductile Iron, GG25/GGG40/GGG50/QT400/QT450 |
| Disc, Wedge | CI, DI with rubber lining |
| Bonnet | Cast Iron, Ductile Iron, GG25/GGG40/GGG50/QT400/QT450 |
| Gland | Cast Iron, Ductile Iron, GG25/GGG40/GGG50/QT400/QT450 |
| Stem | Stainless steel, SS410, SS304 |
| Stem Nut | Brass, C.I. , D.I. |
| Operation | Manual handwheel, gear box, electric actuated, pneumatic cylinder |
Applications:
Water treatment, sewage, irrigation and waster water.
