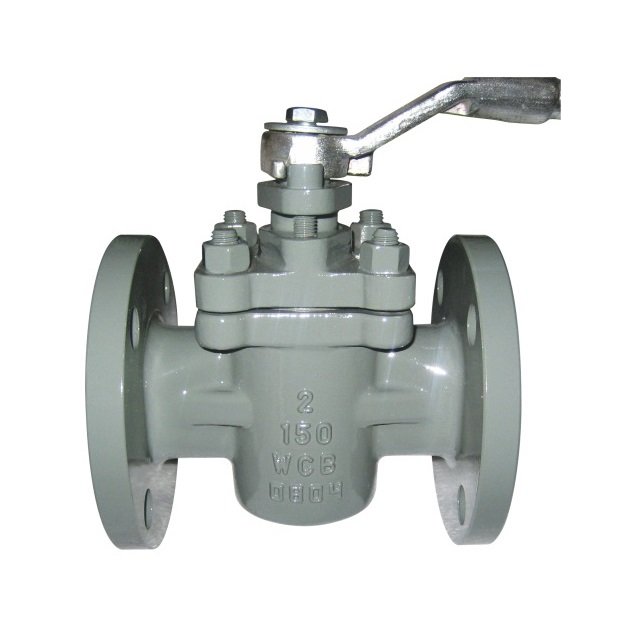

Soft Sealing Sleeved Plug Valve

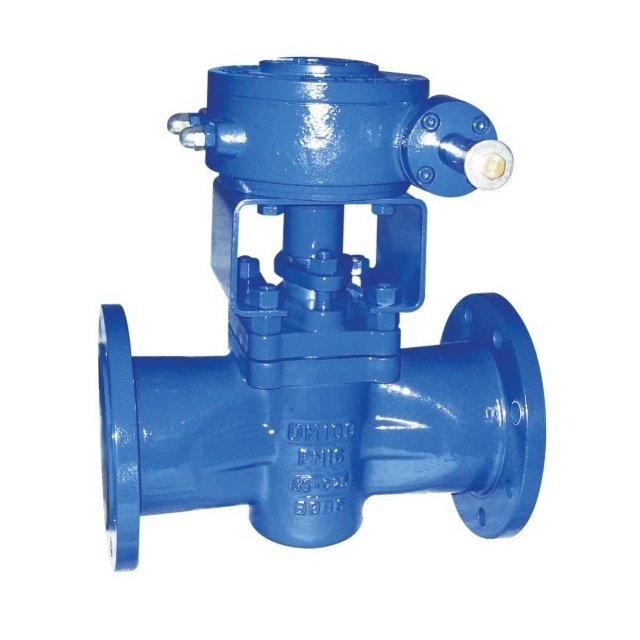

Soft Sealing Sleeved Plug Valve - Image 2

Soft Sealing Sleeved Plug Valve

A plug valve is a rotary valve in the shape of a plug. It can be opened or closed by rotating 90 degrees to connect or separate the channel.

Soft sealed plug valve is used in harsh environments such as corrosive, highly toxic and highly hazardous media, where leakage is strictly prohibited, and where the valve material will not pollute the media. The valve body can be made of carbon steel, alloy steel and stainless steel according to the working medium.

Category:

Technical Specifications:

Design: API599, API6D

Face to Face: EN588 F1/F4/F5

Flanged Connection: GB/T9113, EN1092, ANSI B16.10, JIS B2212

Size : DN15  to DN350

Nominal Pressure : PN16, PN25, PN40, PN64, Class 150, Class 300, Class 600, Class 900

Material List:

Body&bonnet: WCB, CF8, CF8M, SS2205, 904L

Plug : WCB, CF8, CF8M, SS2205, 904L

Sleeve/seat : PTFE, PPL

Driving:

Wrench, wheel, worm gear box, pneumatic, electric motorized

Applications:

water, steam, gas and oil
