Features:
Port: square or circle
Welding Body
Rising stem, non-rising stem (NRS)
Uni-directional
Material: carbon steel, stainless steel, duplex SS
Size: 2″ to 48″(DN50 to DN1200)
Connection dimensions: customized
Operator: bevel gear box, pneumatic cylinder, electrical, hydraulic, chain-wheel

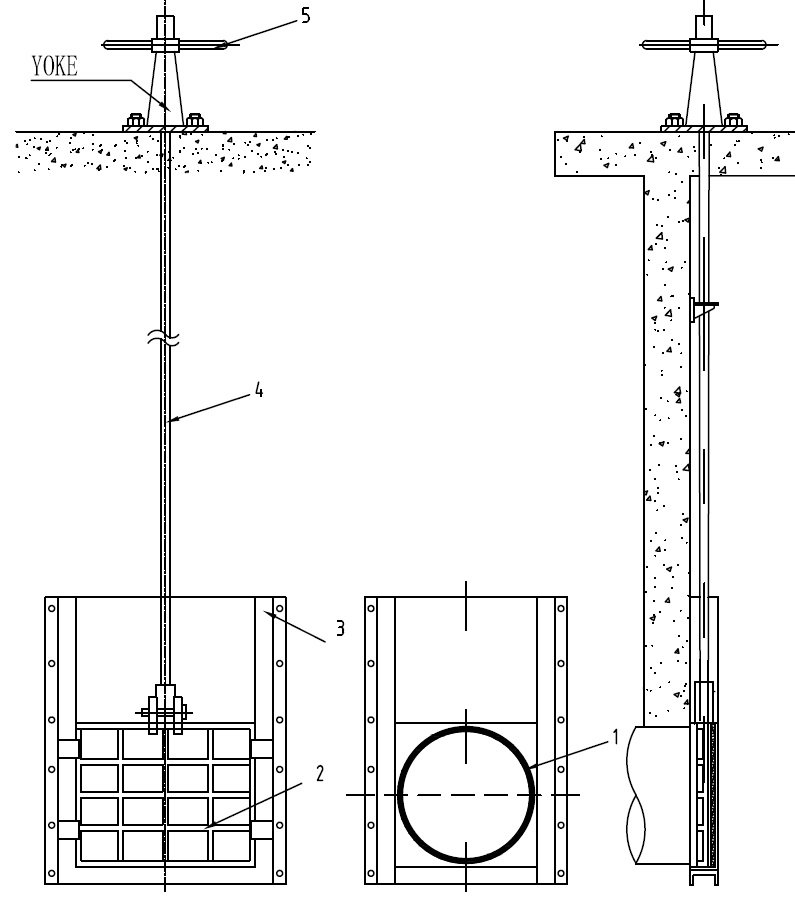

Material List:
| Item No. | Part Name | Material |
| 1 | Sealing Seat | NBR, EPDM |
| 2 | Gate | 20Cr13, SS304, SS316, 904L, SS2205 |
| 3 | Body | Carbon Steel, SS304, SS316 |
| 4 | Stem | 20Cr13, SS304, SS316 |
| 5 | Yoke | Carbon Steel, SS304, SS316 |
