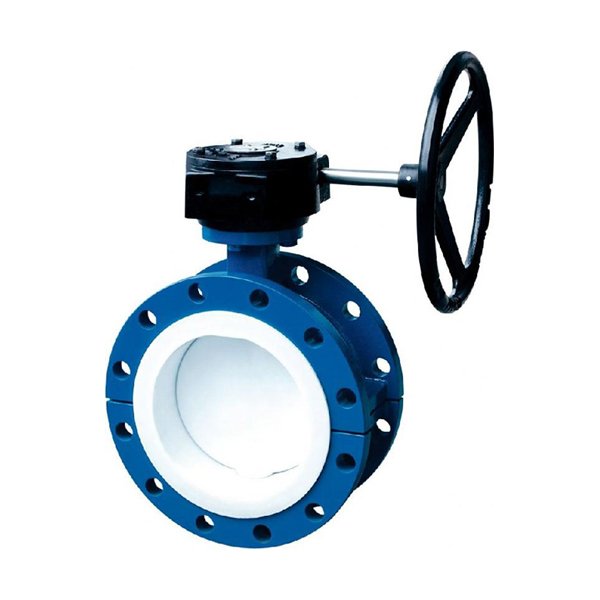

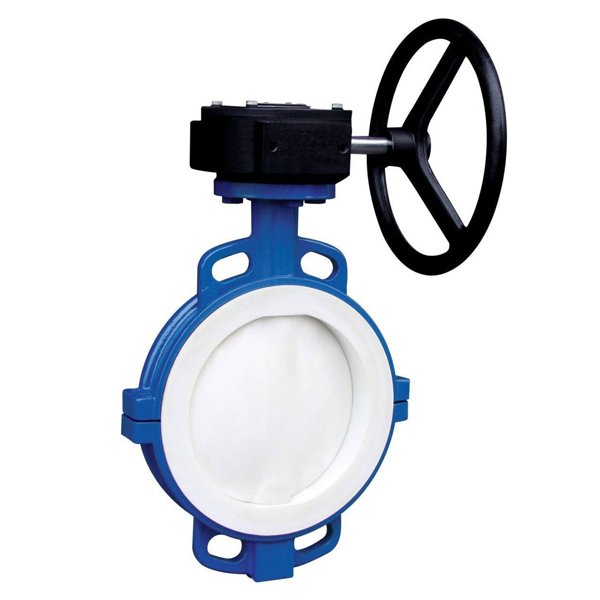

Features:
1.Two pieces body and concentric disc and seat configuration.
2.Fully lined disc and body seat, the painting thickness can reach up to 3-4mm.
3.Absolutely tight sealing with flow in either direction.
4.PTFE Liner seated prevents corrosion and guarantees long service life.

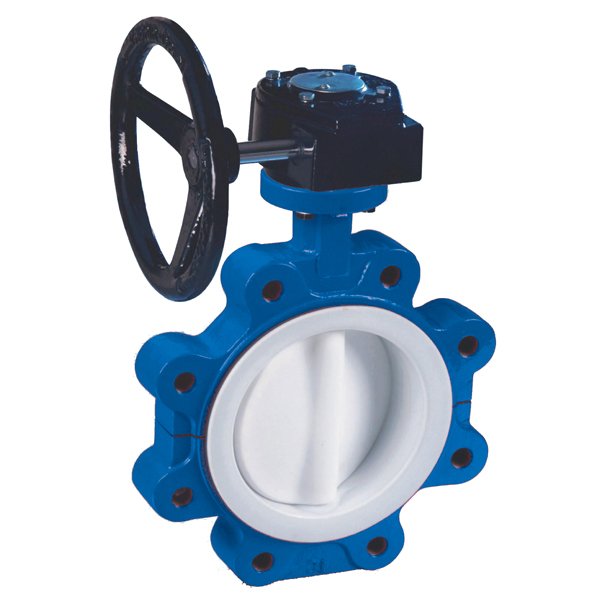

5.Can be disassembled , material specific recycling possible
6.Can be installed at the end of pipe for lugged type butterfly valve.

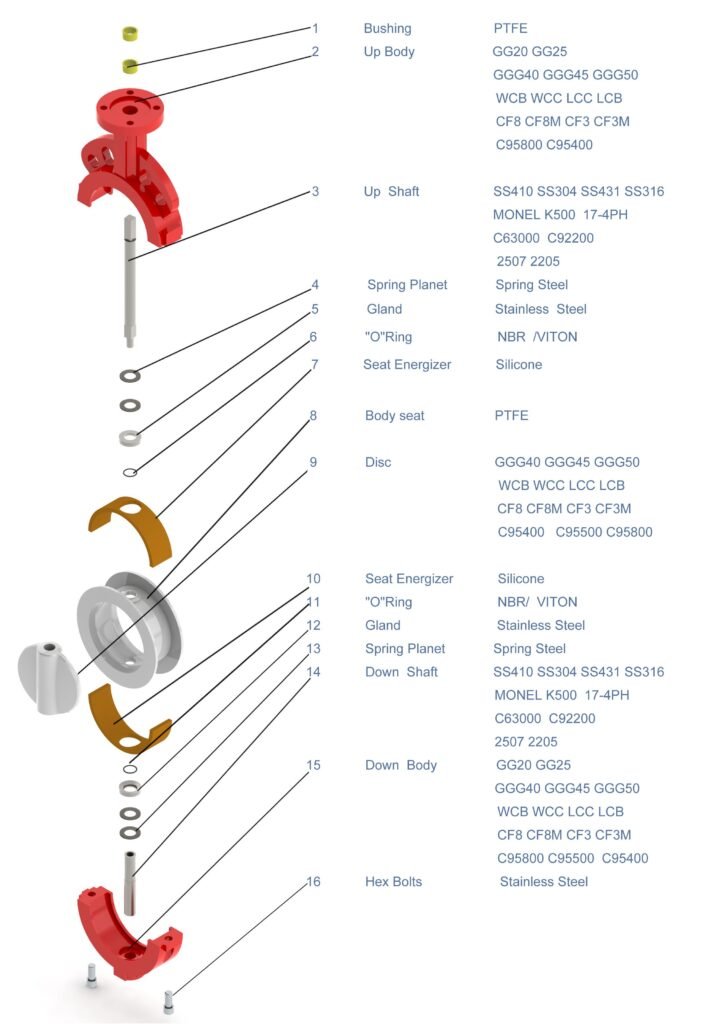

Material List:
| Part Name | Material | ||||
| Cast Iron | Ductile Iron | Carbon Steel | Stainless Steel | Aluminium-bronze | |
| Body | GG20 GG25 A126 | GGG40 GGG45 GGG50 A536 A395 | WCB WCC LCC LCB | CF8 CF8M CF3 CF3M SAF2507 SAF2205 | C95400 C95500 C95800 |
| Disc | GGG40 GGG45 GGG50 A536 A395 | WCB WCC LCC LCB | CF8 CF8M CF3 CF3M SAF2507 SAF2205 | C95400 C95500 C95800 | |
| Liner | PTFE, FEP, PFA, PO, PE | ||||
| Stem | Stainless steel, bronze， 17-4ph, monel k500 | ||||
| Operator | Lever, worm gear, penumatic cylinder, electrical, motorized | ||||
Dimension List:
| Dimensions, PN10/16, CLASS 150, JIS 10K | ||||||||||
| DN(mm) | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| L | 33 | 43 | 46 | 46 | 52 | 56 | 56 | 60 | 68 | 78 |
Applications:
Chemical and petrochemical industries, water and waste water treatment, food processing, petroleum refining and oilfield, textile, sugar and Mining.
