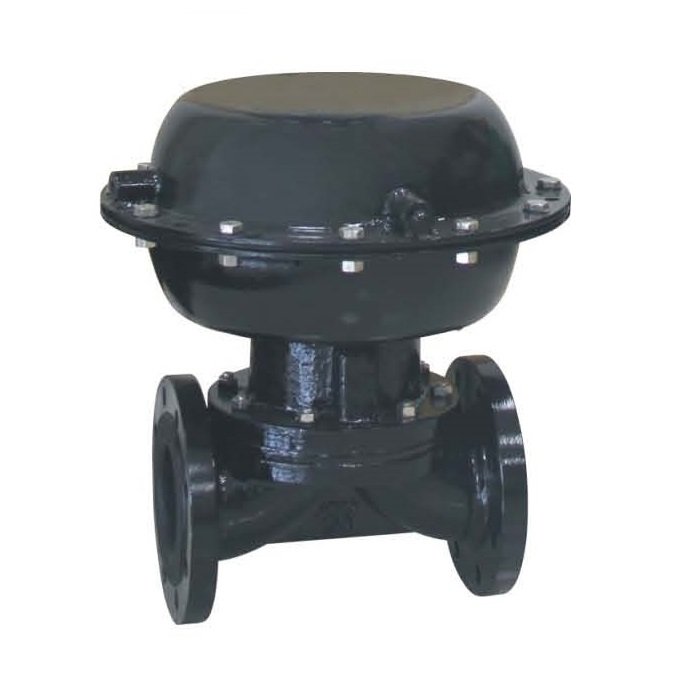

Weir Type Diaphragm Valve

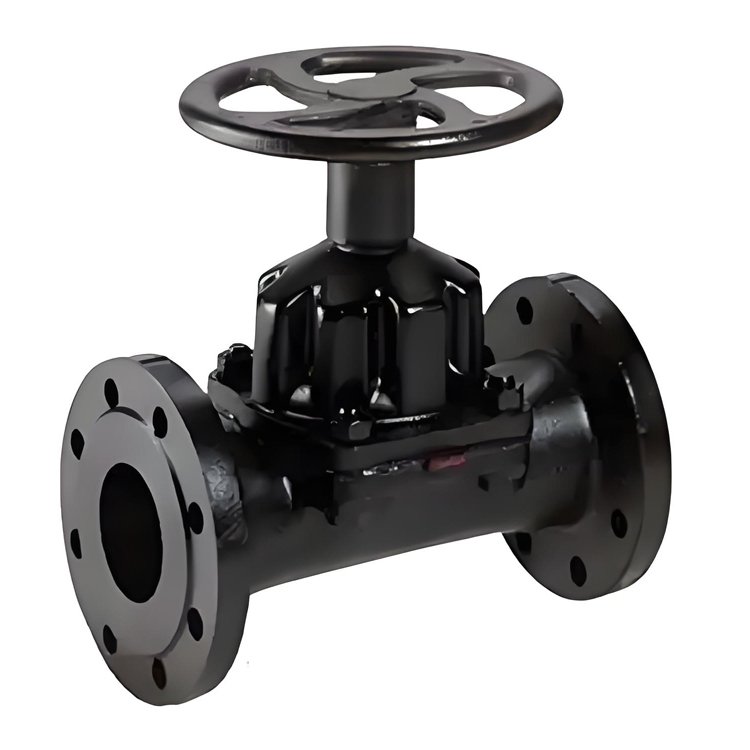

Weir Type Diaphragm Valve - Image 2

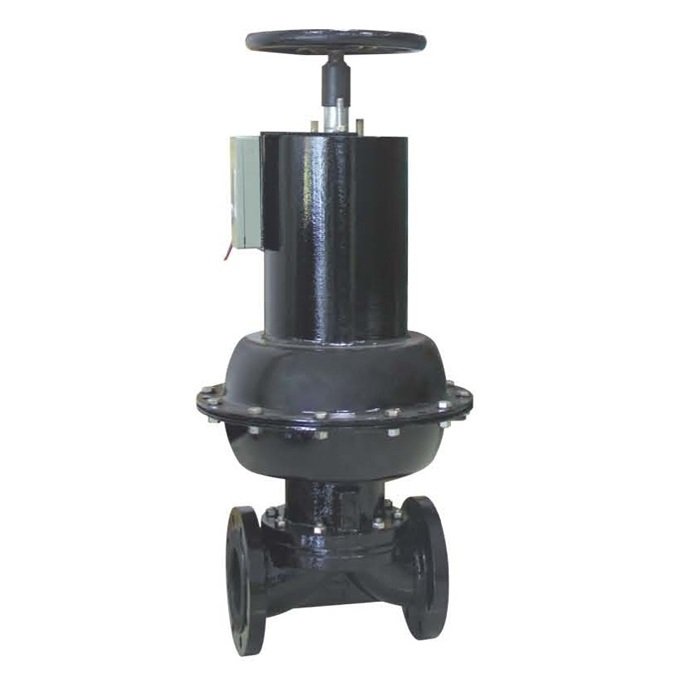

Weir Type Diaphragm Valve - Image 3

Weir Type Diaphragm Valve

The diaphragm valve is a stop valve that uses a diaphragm as a start and stop part to close the flow channel, and cut off the fluid and separate the inner cavity of the valve body from the inner cavity of the valve cover. Diaphragm is usually made of elastic, corrosion-resistant, and non-permeable materials such as rubber and teflon. It has a simple structure, good sealing, corrosion resistance and low fluid resistance.

Category:

Technical Specifications:

Design: BS5156

Flanged Connection: GB/T9113, EN1092, ANSI B16.10, JIS B2212, BS4504

Size : DN20  to DN250

Nominal Pressure : PN6, PN10, PN16,

Material List:

Body&bonnet: cast iron, ductile iron, cast steel, stainless steel

Disc: cast iron, ductile iron, cast steel, stainless steel

Lining : unlined, rubber, NBR, EPDM, NR, PTFE

Diaphragm: rubber, teflon, PTFE

Driving:

Handwheel, pneumatic, electric motorized

Applications:

Suitable for corrosive, viscous and slurry media
